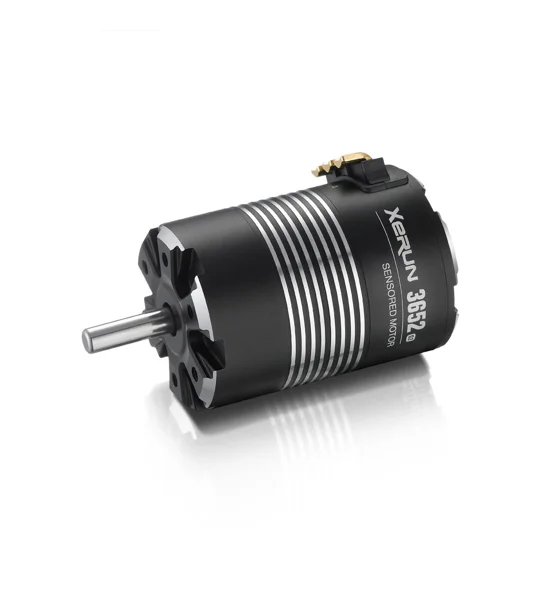

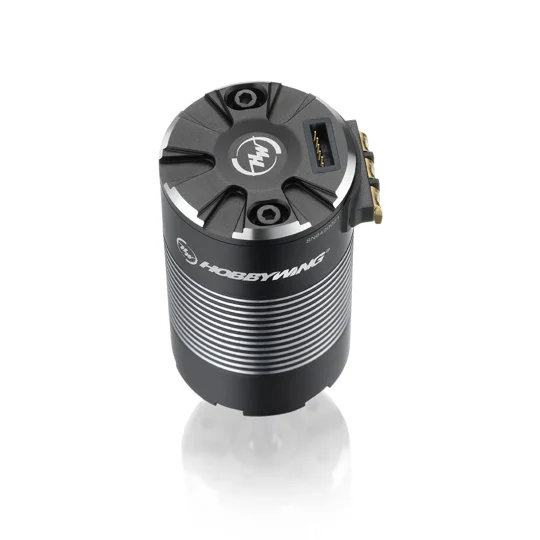

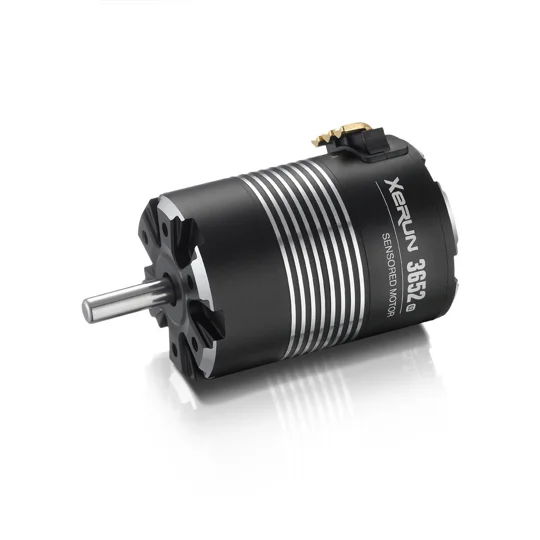

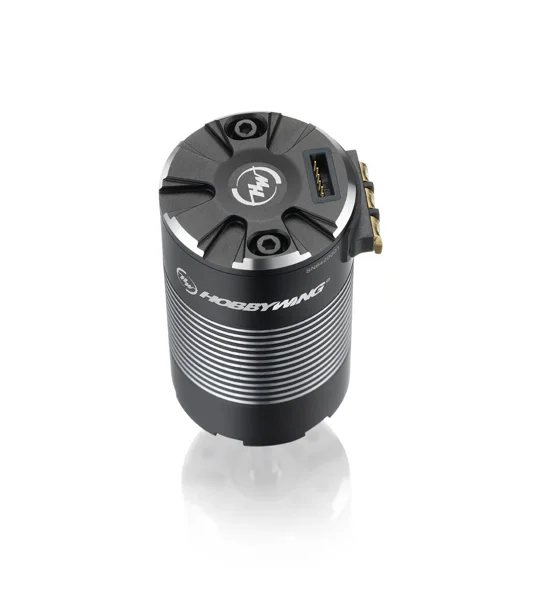

Hobbywing Xerun 3652SD Brushless Motor 4300kV Sensored 5mm Shaft
Hobbywing Xerun 3652SD Brushless Motor 4300kV Sensored 5mm Shaft
Hobbywing Xerun 3652SD Brushless Motor 4300kV Sensored 5mm Shaft
Hobbywing Xerun 3652SD Brushless Motor 4300kV Sensored 5mm Shaft

Hobbywing Xerun 3652SD Brushless Motor 4300kV Sensored 5mm Shaft

Product Code: HW30401059
Brand: Hobbywing
Product Condition: New
110,00 € inc. tax

92,44 € ex. tax
? Tax based on Cyprus.
 Add to Cart
Description

Hobbywing Xerun 3652SD Brushless Motor 4300kV Sensored 5mm Shaft

100% Sensor Mode
This motor is the first motor (in the world) that has a built-in chip that allows the controller to recognize a Hobbywing motor (when it is operated with a XERUN XR8). This combination results in a drive system that is 100% sensor-controlled and therefore offers more power and is even more sensitive to control.
Note: This motor also works with other controllers, but not always in sensor mode.

Turbo Timing Technology
When used with a controller from the XERUN XR8 series, the "Turbo Timing" can be activated. This is already used very successfully on-road in 1/10 scale and also releases the last and most maximum power reserves of the engine.

Bi-directional adjustable timing
The bi-directional adjustable mechanical timing offers the possibility to meet the performance requirements of a wide variety of requirements.
Note: Bi-direction means clockwise or counterclockwise

Advanced Hall Sensor System
This is the first "faultless" Hall Sensor System in the RC sector which guarantees continuous operation in "Full Sensor" mode. A separate high-performance & super fast encoder constantly gives a clear signal and is not disturbed by any other signals.

Low cogging torque

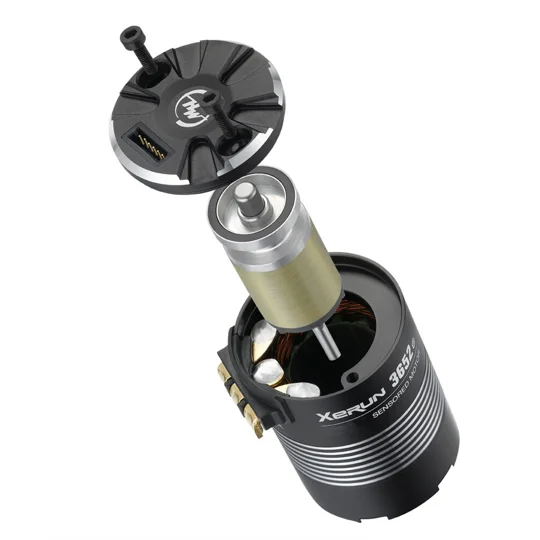

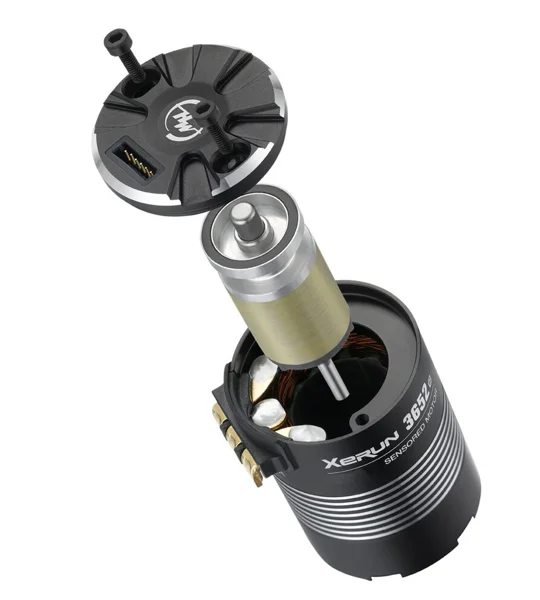

The first motor with an innovative 4 pole / 8 magnets (staggered pole) rotor technology which has an extremely low cogging torque and low torque impulse. (Up to 85% reduced compared to conventional 1/10 motors)

High-quality materials & excellent workmanship

The use of double insulated windings (200?R level), Japanese NMB bearings, super thin silicon steel sheets and the high intensity adhesive (300?) guarantee
users the excellent performance and great durability. (With the strength of the motor is guaranteed,) the wheel hub design, that of front and rear bells reduce the motor weight effectively.



Technical data:

Scale: 1/10
Type: Brushless sensored
None: 4
U/min pro Volt: 4300 KV
LiPo: 2S
Consumption without load: 4.2A
Resistance: 5,2 Ohm
Timing: 20-40 degrees (adjustable)
Outer diameters: 36mm
Long: 52,5mm
Shaft diameter: 5mm
Weight: 187g
